Best EdgeHD Telescopes for Flat-Field Wide-Angle Astrophotography

The best EdgeHD telescopes for flat-field wide-angle astrophotography are the EdgeHD 8 with its dedicated 0.7x reducer for the best balance, the EdgeHD 9.25 for higher resolution on APS-C, and the EdgeHD 11 when a full-frame camera and smaller deep-sky targets justify the extra weight and cost.

EdgeHD wide-field imaging compared

EdgeHD Schmidt-Cassegrain telescopes are designed to correct coma and field curvature across a substantially larger image circle than conventional Schmidt-Cassegrains. That makes them well suited to cameras with APS-C and, with careful spacing and optical alignment, many full-frame sensors. They remain long-focal-length instruments, however: “wide-angle” here means a wider deep-sky field than a standard SCT, not a replacement for a 300mm camera lens.

Celestron EdgeHD 11" Optical Tube for Astrophotography & Visual Astronomy

Included for 'Best EdgeHD Telescopes for Flat-Field Wide-Angle Astrophotography' as a relevant option in this category; details come from the product listing.

View on Amazon →

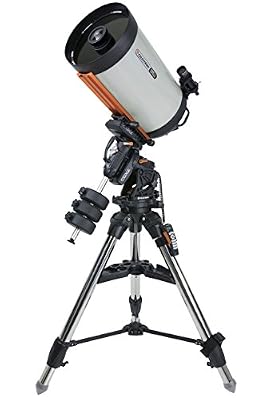

Celestron CGX-L 14" EdgeHD Observatory-Class Astrophotography EQ

Included for 'Best EdgeHD Telescopes for Flat-Field Wide-Angle Astrophotography' as a relevant option in this category; details come from the product listing.

View on Amazon →

The listed image circle is an optical design figure, not a promise that every camera will produce perfect corners. Vignetting, filters, adapters, tilt, reducer spacing, and the camera’s mechanical opening can all reduce usable coverage.

Which EdgeHD should you buy?

EdgeHD 8: the most practical wide-field choice

The EdgeHD 8 is the strongest all-round recommendation for flat-field wide-angle imaging. Its 2,032mm native focal length is already demanding, while the dedicated 0.7x reducer brings it to roughly 1,422mm. That reduction improves framing and lowers the exposure time needed for a given signal-to-noise target compared with f/10.

Its 203mm aperture gathers more light than smaller refractors, but the tube remains considerably easier to mount than the larger EdgeHD models. An APS-C camera uses only the central portion of the corrected field, making corner performance easier to achieve. A full-frame camera can work, but expect to inspect calibrated corner stars rather than assuming the entire 42mm-class field will be perfect.

EdgeHD 9.25: more resolution without the jump to an 11-inch tube

The EdgeHD 9.25 increases aperture to 235mm and reaches 1,645mm with its reducer. It is a good choice when the target is relatively small and the camera has modest pixels or an APS-C sensor. Compared with the EdgeHD 8, it gives more resolving power, but the longer focal length makes guiding, seeing, focus, and mount quality more important.

Choose it over the 8 when you regularly image galaxies, planetary nebulae, or compact emission regions and can support the larger optical tube. It is less compelling if your priority is the broadest possible framing of large nebulae.

EdgeHD 11: a high-resolution imaging platform

The EdgeHD 11 provides 280mm of aperture and a 2,800mm native focal length. Its 0.7x reducer produces approximately 1,960mm at f/7. This is excellent for smaller deep-sky objects and high-resolution work, but it is not forgiving. A periodic-error problem, flexure, wind vibration, or imperfect polar alignment becomes much more visible at this focal length.

Although its corrected field is suitable for large sensors in principle, full-frame imaging places greater demands on reducer spacing and sensor tilt. A well-adjusted APS-C setup is usually easier to optimize. Use the EdgeHD 11 when resolution matters more than broad composition and the mount has a substantial payload margin.

EdgeHD 14: specialized rather than broadly wide-field

The EdgeHD 14 is a 356mm instrument with a native focal length of 3,910mm and an unusual f/11 starting point. Its dedicated reducer brings it to approximately 2,737mm at about f/7.7. It can deliver outstanding image scale, but its physical size, mass, long focal length, and sensitivity to atmospheric seeing make it a specialist choice.

For most mobile or backyard imagers, an EdgeHD 8 or 9.25 paired with a larger sensor provides a more useful field of view. The 14 makes sense for a permanent pier, a robust equatorial mount, and targets where fine detail is more valuable than composition flexibility.

Sensor coverage: calculate the field before choosing

The diagonal of a common APS-C sensor is approximately 28.4mm, while a full-frame 36 × 24mm sensor has a diagonal of about 43.3mm. An EdgeHD system advertised around a 42mm corrected image circle therefore gives APS-C cameras comfortable geometric coverage and approaches full-frame coverage, but full-frame corners may still show illumination falloff or star-shape changes.

Use this approximate field-of-view calculation:

Field of view in degrees = sensor dimension ÷ focal length × 57.3

For a full-frame camera on an EdgeHD 8 with the 0.7x reducer, the horizontal field is approximately:

36 ÷ 1,422 × 57.3 = 1.45 degrees

The vertical field is approximately 0.97 degrees. With the same camera at the native 2,032mm focal length, the field shrinks to about 1.01 × 0.68 degrees. The reducer therefore increases each linear field dimension by roughly 43 percent and increases the sky area by about 2.04 times.

That calculation explains why the reducer is central to a wide-field EdgeHD setup. It does not merely make the telescope faster; it makes targets fit the sensor more easily and reduces the number of mosaics needed.

Reducer compatibility and backfocus

Use the reducer made for the specific EdgeHD aperture. Reducer compatibility is not interchangeable between the 8, 9.25, 11, and 14-inch systems. The 0.7x units are designed to preserve the telescope’s corrected field when the specified backfocus is maintained.

• EdgeHD 8 reducer: plan around 105mm of backfocus from the reducer’s rear reference surface to the camera sensor.
• EdgeHD 9.25, 11, and 14 reducers: plan around 146mm of backfocus, then account for filters, filter wheels, off-axis guiders, adapters, and camera flange distance.
• Do not rely on visual estimates: measure the optical path and use the camera manufacturer’s flange-to-sensor distance.
• Do not combine arbitrary focal reducers: a reducer designed for a conventional SCT can introduce severe edge aberrations on an EdgeHD optical system.

A typical imaging train might include the reducer, a spacer, an off-axis guider, a filter wheel, a camera adapter, and the camera itself. Add those mechanical lengths together. If the total is short, add a precisely measured spacer; if it is long, replace components rather than forcing the focuser to compensate. Incorrect spacing commonly produces elongated or bloated stars near the edges even when the telescope is otherwise well collimated.

Decision matrix for real imaging setups

How to obtain genuinely flat, sharp corners

1. Start with the correct reducer and spacing. This addresses the most common optical cause of bad corner stars.
2. Check tilt before changing collimation. If one side of the frame is worse than the opposite side, sensor or adapter tilt is more likely than global collimation.
3. Inspect an unprocessed star field. Take a short exposure through the intended filter and examine all four corners at 100 percent. Calibration can remove vignetting but cannot repair distorted stars.
4. Use an off-axis guider where possible. At 1,400–2,700mm, a separate guide scope can flex relative to the imaging tube. Off-axis guiding samples the same optical path as the camera.
5. Refocus after major temperature changes. SCT focus shifts as the optical tube changes temperature. Automated focusing or periodic refocusing is especially valuable at f/7 and longer.
6. Collimate at the imaging focal ratio. A telescope that looks acceptable visually can still show asymmetric stars on a large sensor. Make small adjustments and recheck the center and corners.

Native focal length or 0.7x reducer?

Use the reducer when the target is too large for the native field, when shorter exposures are useful, or when the camera’s pixel scale is already fine enough. Use native f/10 when the target is small and the mount, seeing, and guiding support the extra image scale.

For example, a camera with 3.76-micron pixels on an EdgeHD 8 samples at approximately 0.38 arcseconds per pixel natively, calculated from 206.3 × pixel size in microns ÷ focal length in millimeters. With the reducer, sampling becomes approximately 0.55 arcseconds per pixel. The reduced configuration is more tolerant of seeing and guiding errors while covering more sky, which is why it is usually the better starting point for deep-sky work.

Bottom line

For most photographers searching for the best EdgeHD telescopes for flat-field wide-angle astrophotography, the EdgeHD 8 with its matched 0.7x reducer is the safest recommendation. Select the EdgeHD 9.25 when you need more resolution on smaller targets, the EdgeHD 11 when you have a strong mount and a serious full-frame or APS-C imaging plan, and the EdgeHD 14 only when a permanent, high-capacity setup can exploit its extreme image scale. In every case, sensor dimensions, reducer spacing, mechanical tilt, and guiding quality matter as much as the telescope’s published aperture and image circle.
